AC Infinity | IONGRID S22 | Full Spectrum LED Grow Light 100w
AC Infinity
$169.95
(No reviews yet)
Write a Review
AC Infinity
AC Infinity | IONGRID S22 | Full Spectrum LED Grow Light 100w
- Innovative halo design produces uniform coverage and deeper light penetration to maximize plant yields.
- Specially formulated with full-spectrum Samsung LM301H white, red, and IR LEDs optimized for all grow stages.
- Linear bar light design adapted into four-sided halo form factor to achieve commercial lighting output.
- Digital controller with daisy-chaining ports featuring PWM dimming, timers, cycles, and backup memory.
- Air-suspended driver over aluminum heatsink passively cools LEDs to last longer and boost PAR output.
PRODUCT DESCRIPTION
An indoor LED grow lamp with an innovative halo design crafted to maximize plant yields by providing uniform coverage and deeper light penetration. This LED grow system uses the latest Samsung LM301H diodes to efficiently produce full-spectrum lighting fit for use during the germination, vegetative, and flowering stages.

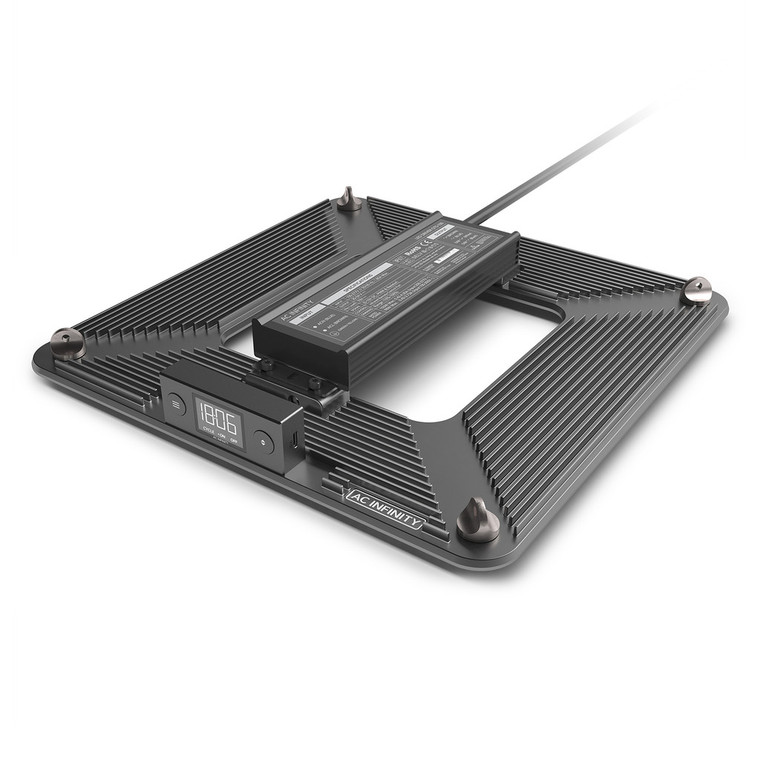

The grow tent light is built with a raised LED driver, set on top of an aluminum frame with a thermal compound for no-noise heat dissipation. This, along with the included digital controller, also enables pairing with additional LED grow lights when using expansion dongles (sold separately). It is primarily set in grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables. Each unit is plug-and-play, and includes a set of rope hanging hardware to be ready for use out of the box. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.
SPECIALIZED FORM FACTOR
These light-emitting diodes are arranged in a halo ring form factor, which allows for even coverage and deeper penetration. This lighting maximizes your grow tent’s capacity and growth potential by expanding the amount of usable growing space and reaching past your plant’s canopy. The diodes’ arrangement also enables the LED grow light to achieve commercial bar light performance and provide full coverage in 2x2 spaces.
DIGITAL CONTROLLER
Each system includes a programmable controller that is capable of efficient 0-100% PWM dimming. Set timers and consistent light cycles up to 24 hours for both on and off. Features baseline brightness levels and backup memory in case of a temporary power loss. Controllers can be detached to be mounted remotely and are built with extension ports to provide programming to additional LED grow lights.
The Samsung LM301H LED diode is a mid-power LED known for its efficiency and effectiveness in horticultural lighting applications. Utilizing a plant-centric spectrum, it emits a suitable 437 nm wavelength, optimizing plant growth. With a forward voltage ranging from 2.6 to 2.9 V, a forward current of 65 mA, and a luminous flux of 28 to 36 lm, it offers a power output of 0.3 W. Renowned for its high photosynthetic photon flux density (PPFD), it is a popular choice among growers seeking efficient and customizable lighting solutions for indoor cultivation.
The intelligent IONGRID S22 offers a remarkable PPFD of up to 1253 μmol/m²/s, rendering it an exceptional option for commercial farming and improving flower development for superior crop quality and increased yields. The LED chips on every light bar are strategically positioned in a scientifically refined arrangement, ensuring uniform light dispersion for consistent plant growth and preventing concentrated hotspots at the center.
The distinctive spectrum of the IONGRID S22 comprises an exact mix of blue and red wavelengths, supplemented by ample green light to foster ideal plant development. Blue light encourages vegetative growth and aids in the synthesis of crucial phytochemicals, while the plentiful red light expedites maturation and enhances the quality of buds and blooms. Additionally, the inclusion of sufficient green light ensures essential plant growth and optimizes light penetration for improved overall performance.
The AC Infinity Proprietary Driver, Model GTS-100, is a cutting-edge LED driver designed for optimal performance in indoor gardening setups. With its advanced features, including 0-100% dimming capability and compatibility with smart controllers, this driver ensures precise control over light intensity to meet the specific needs of plants at different growth stages. Whether you're a beginner or an experienced grower, the GTS-100 driver offers reliability and flexibility, allowing you to create the ideal environment for your plants' growth and development.
The IONGRID S22 grow light offers an auto-dimming feature that can be fine-tuned to the year, month, day, hour, and minute, guaranteeing that the light intensity is customized to align with your grow schedules. This level of precision provides the Sunrise & Sunset Simulation feature that replicates the natural photoperiod of plants, offering a professional-level option for personal growth.
WATTAGE
100W±5% 120-277V
Core Coverage
2'x2'
Max Coverage
2.5'x2.5'
PPE
2.7 μmol/j
PPF
1253μmol/S
Chip Brand
SAMSUNG LM301H
Spectrum
660-665nm 2800-3000K 4800-5000K
Max Yield
3.5g/W
Voltage
AC120-277V
Amps
1.17 A @ 120V | 0.58 A @ 240V | 0.51 A @ 277V
Frequency
50/60hz
Certificate
ETL,CE,UKCA,RoHS
Lifespan
50000H
WARRANTY
2 years
Dimension
12.99 x 12.99 in. (33.0 x 33.0 cm)
Diy Product Type
LED_GROW_LIGHT
Diy Tent Parent Sku
AC-CBA422
Build Led Ppe
2.7μmol/j
Build Led Model
IONGRID S22
